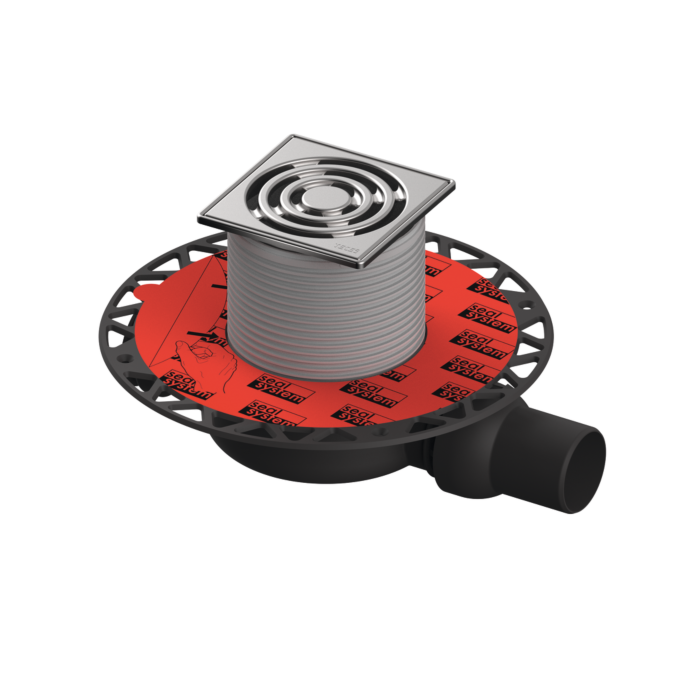

TECEdrainpoint S 112 drain set, super flat 3601102 100x100, DN50, horizontal, with odor trap
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 3601102
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
TECEdrainpoint S 112 drain set super flat 3601102
- Item number 3601102
- super flat
- horizontal
- Drain body DN 50 horizontal, super flat, made of plastic (PP)
- with universal flange for connecting composite seals or clamping flange connections
- with ball joint
- with side inlet DN 40 including sealing plug
- with removable 2-stage membrane odor trap
- 20 mm sealing water and additional sealing lip membrane
- Top section made of plastic (ABS) and O-ring seal
- Grate frame made of drawn Stainless Steel , material 2000 .4301 (304) for grate dimensions 100 x 100 mm
- TECEdrainpoint S designer grate made of drawn Stainless Steel , material 2000 .4301 (304), dimensions 100 x 100 mm, polished surface, load class K3 (loadable up to 300 kg)
- Drainage capacity according to DIN EN 1253 at a 10/20 mm damming height above grate
- with minimum height of the 1930 : 1930 , 51 / 1930 , 61 l / s
- at maximum height of the 1930 : 1930 , 56 / 2000 , 23 l / s
- Delivery including construction time protection cover, construction time protection film and assembly instructions
