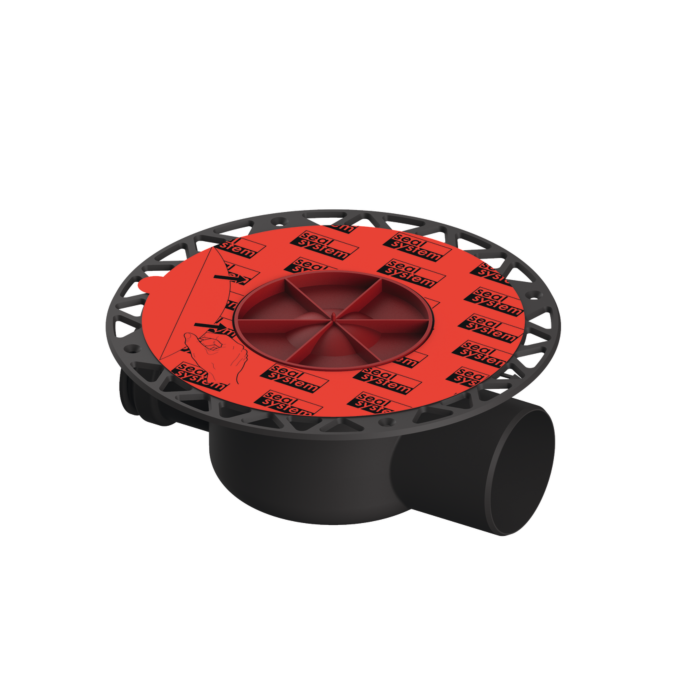

TECEdrainpoint S drain DN70 horizontal 3603500 with Seal System universal flange
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 3603500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
TECEdrainpoint S drain DN70 horizontal 3603500
- Item number 3603500
- Drain DN 70 with Seal System universal flange
Floor drain TECEdrainpoint S DN 70 horizontal, made of plastic (PP), tested according to DIN EN 1253 - with universal flange for connecting composite seals or clamping flange connections
- with side inlet DN 50 including sealing plug
- with removable odor trap
- Sealing water height = 50 mm acc. DIN EN 1253
- Drainage capacity according to DIN EN 1253 at a 10/20 mm damming height above grate
- with minimum height of the 1930 : 1930 , 62 / 2000 , 22 l / s
- at the maximum height of the 1930 : 1930 , 87 / 2000 , 74 l / s
