TECEdrainpoint S fire protection set Fire Stop 3690050 EI 120, DN 50
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 3690050
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
TECEdrainpoint S fire protection set Fire Stop 3690050
- Item number 3690050
- Fire protection set FireStop EI 120 DN 50

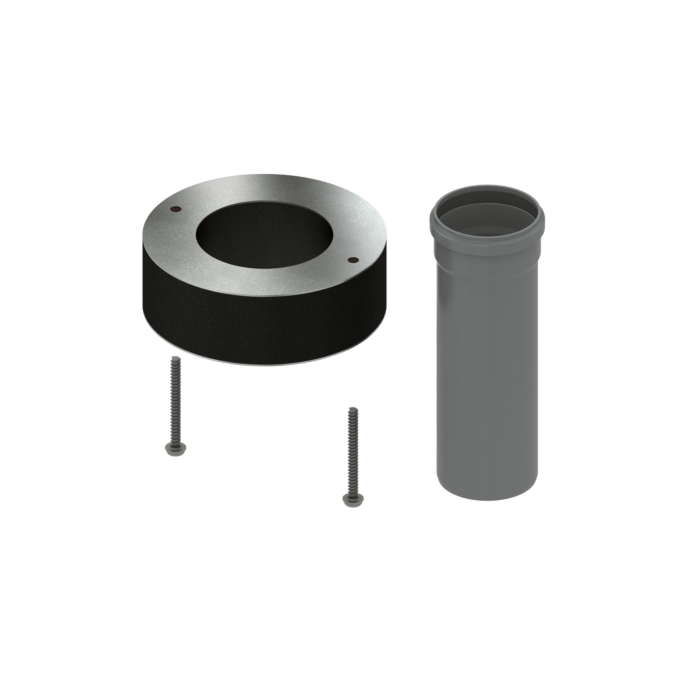

Fire protection set for direct installation on the drain. TECEdrainpoint S DN 50 vertical, for highly fire-resistant partitioning of ceiling ducts in solid ceilings up to 120 minutes. Classification according to DIN EN 13501 for fire protection class EI 120, European technical approval (ETA-11/0437 - Set consists of fire protection sleeve, 2 Phillips screws, identification label and 150 mm PP-HT pipe DN 50 according to DIN EN 1451
- Required core hole:
Diameter 120 mm (min = 119 mm, max = 123 mm) - Scope of application:
Solid ceilings from 150-325 mm thick - No grouting or filling of the space required
