TECElux WC module 200 height adjustable 9600200 construction height 1120mm
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 100
Part Number: 9600200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

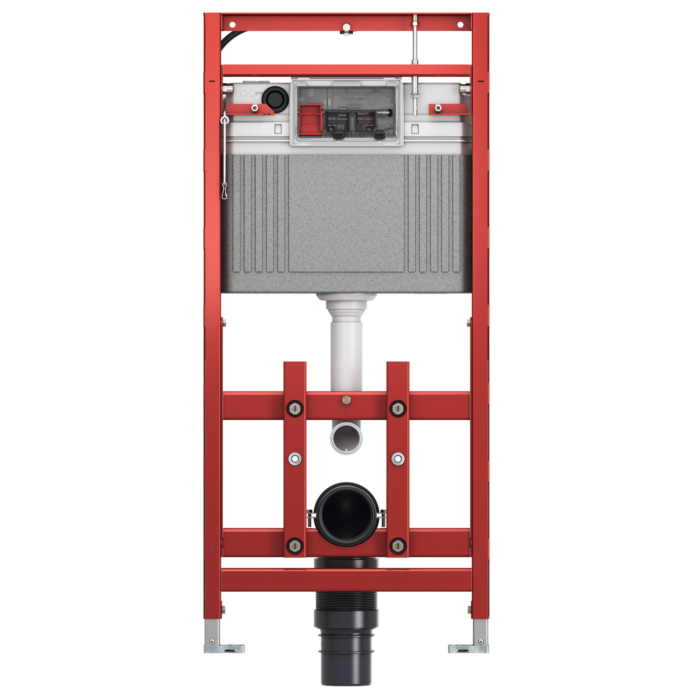

TECElux WC module 200 height adjustable 9600200
- Item number 9600200
- Dry construction TECEprofil for attachment to TECEprofil profile TECEprofil or for installation in metal or wooden stud walls and as a pre-wall or corner module.
- For TECElux operating WC plate and WC glass plate,
- subsequently height adjustable by 8 cm.
- Fully pre-assembled unit, consisting of
- out:
- TECE UP cistern:
- - Safety tank made of impact-resistant
- plastic
- Cistern completely pre-assembled and
- sealed
- Angle valve and cistern connection
- pre-assembled
- 2000 with 2000 / 2 "
- External thread
- 10 liter tank volume, 6 liter
- preset standard flush volume,
- 9 / 7.5 / 4.5 liter flush volume at any time
- optimally adjustable, 3 liters
- Partial flushing with dual-flush technology.
- Remaining volume for immediate
- Cleaning rinsing can be used.
- insulated against condensation
- according to DIN EN 14055
- 2000 according to DIN 4109
- low-noise hydraulic filling valve
- Including slot for cleaning tabs. Allows cleaning WC added to the cistern for a fresh WC flush.
- Module:
- self-supporting mounting frame with
- powder-coated surface
- depth adjustable holder for upper
- Operating glass plate and lower
- WC plate, also manually afterwards
- adjustable in height
- Two adjustable footrests for
- a floor structure of 1930 -200 mm
- two retaining bolts and M 12 nuts
- Admission for WC ceramics with distance
- 180 mm
- Flexible WC drain bend DN 90,
- Connection piece made of PE-HD
- (weldable), including transition piece
- DN 90/100 made of PP
- WC connection set DN 90,
- including
- Safety building protection plug
- great shell protection
- suitable for wall structures up to 45 mm
- Dimensions (H x W x D): 1120 x 500 x 180 mm
