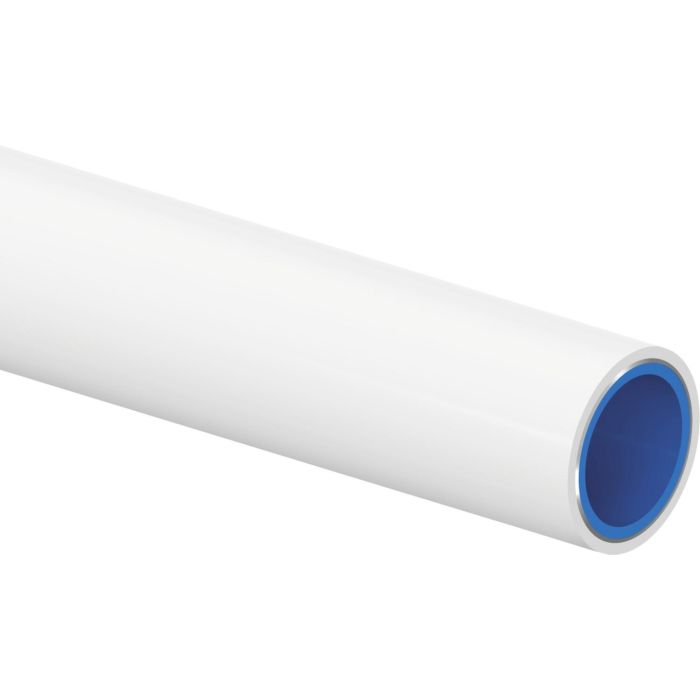

Uponor Uni Pipe Plus composite pipe 1059576
  • Absolutely oxygen diffusion-tight 5-layer composite pipe (PE-RT adhesion promoter- seamless aluminum layer adhesion promoter-PE-RT) manufactured with SAC technology
  • usable for distribution
  • Risers and connection lines in the area of sanitary
  • Heating and surface heating installation
  • Fire class E according to DIN EN 13501-1
  • DVGW system test mark for drinking water installations. The pipe ends are equipped with a removable hygienic seal according to DIN EN 806
  • Temperature resistance for drinking water: max. permissible continuous operating temperature of 70 °C at max. continuous operating pressure of 10 bar
  • short-term failure temperature of 95 °C for a maximum of 100 hours of operation
  • Temperature resistance for heating: max. permissible continuous operating temperature of 80 °C at max. continuous operating pressure of 10 bar
  • short-term failure temperature of 100 °C for max. 100 h operating time.
