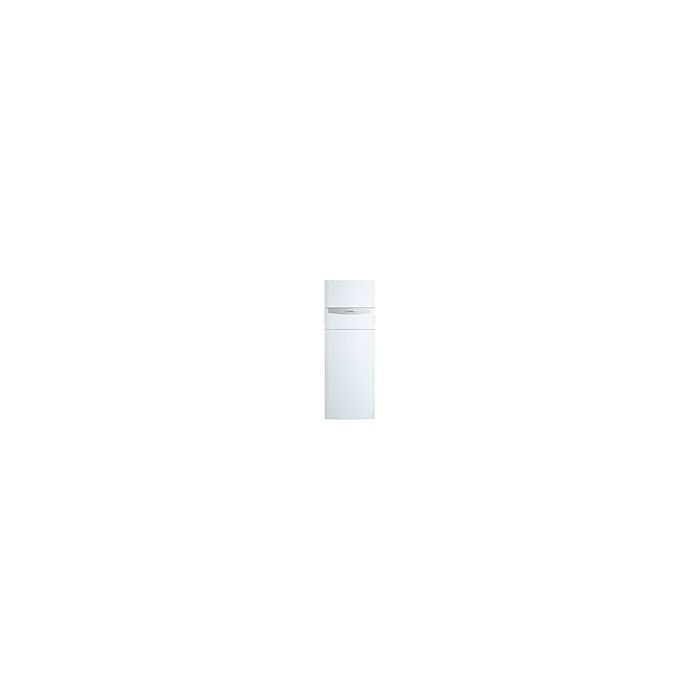

Vaillant ecoCOMPACT gas compact device 0010015604 VCC 206/4-5 150, with condensing technology
€4,932.88
instead of
€7,684.51
**
-36%
You're saving
€2,751.63
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 15110
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Vaillant ecoCOMPACT gas compact device 0010015604
- Combination device for heating and hot water
- High-efficiency pumps for heating and storage charging
- Electronic gas-air ratio
- Multi-sensor system
- all components/accessories in one housing
- Split mounting concept
- Consisting of integrated WW coiled tubing storage (150 liters)
- Stainless steel secondary heat exchanger
- High efficiency charging and circulation pump
- priority switching valve
- pressure sensor
- 15 liters ADG
- Integral condensing heat exchanger made of stainless steel
- Integrated memory control
- DIA system with illuminated symbol display and installation option for a weather-compensated heating controller calorMATIC VRC 700 gas type E
- 40/30°C
- 4.3-21.6kW
- 60/40ºC
- 4.1-20.8kW
- Storage charging capacity 24.0 KW
- max. heat load memory 24.5KW
- Standard efficiency 98% (Hs)/109% (Hi)
- Modulation range from 20 to 100%
- Flow temperature max. 85 °C
- Electrical connection 230V/50Hz
- max. electr. Power consumption 70 W
- Flow/return connection Rp 3/4
- Cold/hot water connection Rp 3/4
- Gas connection Rp 3/4
- Air/exhaust connection 60/100 mm
- Weight (empty) 140 kg
- Total tank capacity 150 l
- Height/width/depth 1640/595/693 mm
- Seasonal space heating energy efficiency class A (spectrum A++ to G)
- Seasonal water heating energy efficiency class A (Range A to G)
- Power connection (3~/400V) required. Local network operator approval may be required. Installation only by qualified specialists.
- Warning: Gas appliances may only be installed by qualified personnel
- Caution: The device may only be installed with original Vaillant flue gas accessories!!
