Vaillant flexoTHERM connection console 0020229713 integrated brine filling station
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 0020229713
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

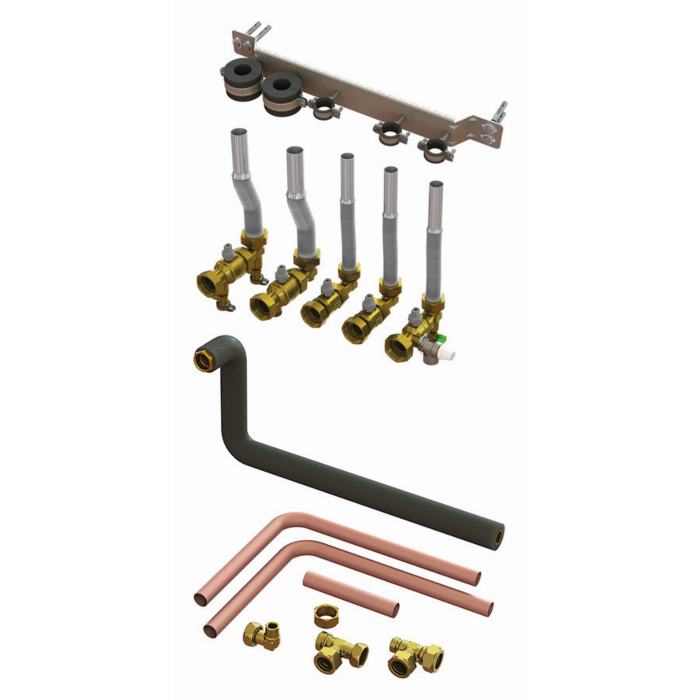

Vaillant flexoTHERM connection bracket 0020229713
- Connection console with flexible connection pipes for piping upwards and downwards with smooth stainless steel pipes
- Compact combination option with Natural Cooling Module VWZ NC 11/4 and NC 19/4
- Shut-off devices for all connections
- Brine filling function
- Connection option to brine expansion tank (302097 or 302098 and holder 0020173592)
- brine pressure gauge
- Possibility of connection to safety valve
- Heating connection with shut-off devices for filling
- vent
- emptying
- Flow shut-off device with safety valve and flushing and filling option for the heating system
- Decoupling of the brine circuit via appropriate refrigeration pipe clamps
- acoustic decoupling via appropriately mounted corrugated pipes
- Connection console with flexible connection pipes for piping on the left or right
