Viega Advantix bathroom drain 583231 top with Rahmen made of plastic, DN 50, odor- Rahmen
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 583231
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

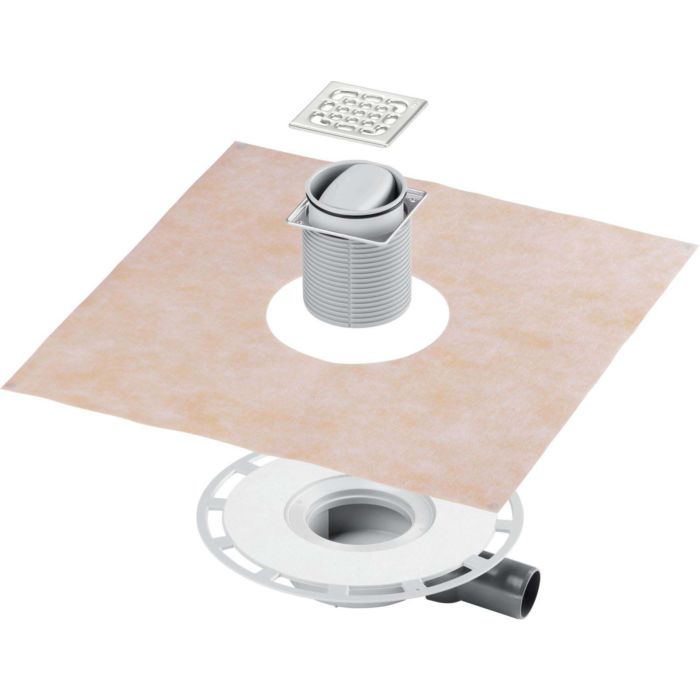

Viega Advantix bathroom drain 583231
- for composite sealing (tiled shower) with sealing mat
- System dimension 100
- consisting of attachment 100 x 100 mm
- adjustable in rotation and height
- Rust Stainless Steel 2000 .4301
- Plug
- Building protection
- Schlüter-KERDI sealing sleeve
- Sealing flange
- Removable odor trap
- Inlet DN40
- Drain pipe with ball joint adhesive (ASA)
- Barrier water height 30 mm
- Load class K = 300 kg
- Drainage capacity accumulation height 10 mm 1930
- 33 l / s
- Drainage capacity accumulation height 20 mm 1930
- 4 l / s
- Drainage performance according to DIN EN 1253
