Viega Advantix odor trap 737580 from 70 mm installation height, renovation model, 4982.93
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 737580
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

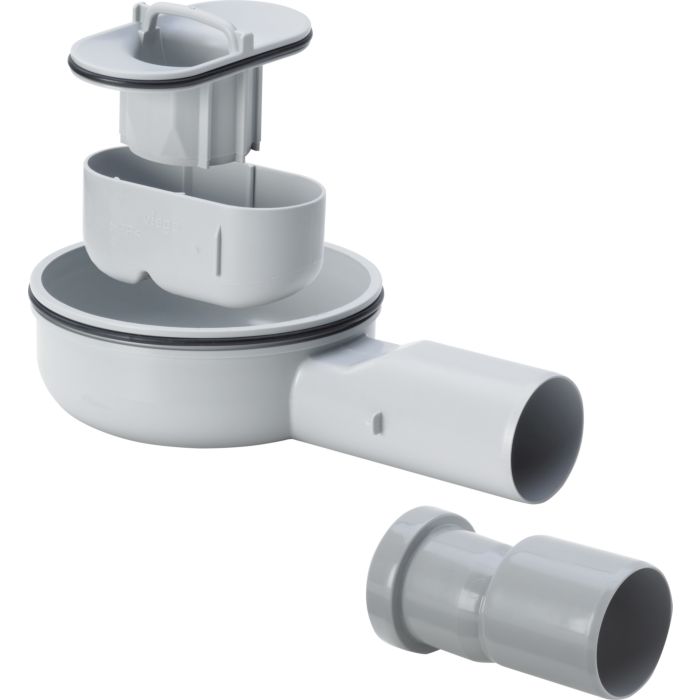

Viega Advantix trap 737580
- for Advantix Shower Channel
- for installation heights from 70 mm
- Equipment: Removable odor trap, possibility to clean the connecting line, DN40 swivel, transition piece to DN50
- Barrier water height 25 mm
- Drainage capacity accumulation height 10 mm 1930 , 4 l / s
- Drainage capacity accumulation height 20 mm 1930 , 45 l / s
- Note
- Due to the high position of the connecting pipe, this screed model cannot cover the screed sufficiently. The specialist planner must take this into account in good time. A possible on-site solution regarding tile size and / or a possible potting with epoxy resin must be planned in!
Downloads (1)
Product Safety
Manufacturer
Viega GmbH & Co. KG
E-Mail
webmaster@viega.de
Address
Viega Platz 1
57439 Attendorn
Germany
