Viega Advantix Vario shower channel 736736 300-1200mm, wall model, renovation model, 4968.10
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: 736736
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

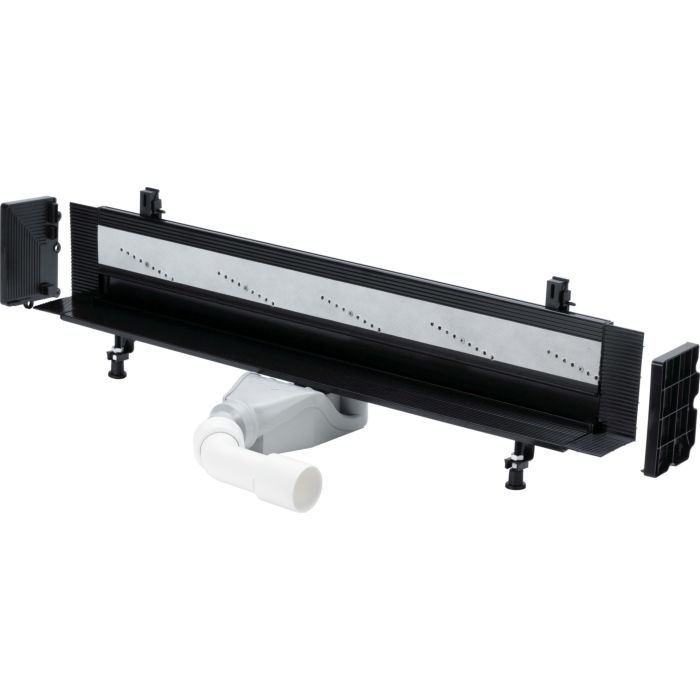

Viega Advantix Vario shower channel 736736
- continuously cut to length, 70 mm, (renovation model)
- for composite waterproofing (tiled shower) or waterproofing membrane
- High quality plastic
- Equipment: adjustable foot set, 4 locking pieces, self-cleaning waste set, tile end strip can be flexibly adjusted, strainer insert removable, tile protection and control tool, cleaning brush, sealing flange, sealing accessories, sawing aid
- Barrier water height 30 mm
- Drainage capacity accumulation height 10 mm 1930 , 4 l / s
- Drainage capacity accumulation height 20 mm 1930 , 5 l / s
- Installation depth wall 25 mm
- Due to the high position of the connecting pipe, this screed model cannot cover the screed sufficiently. The specialist planner must take this into account in good time. A possible on-site solution regarding tile size and / or a possible potting with epoxy resin must be planned in!
