Wilo DrainLift shaft pumping station 2506434 WS 1100 E/TP 80, PRO V06, with tank
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: 2506434
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

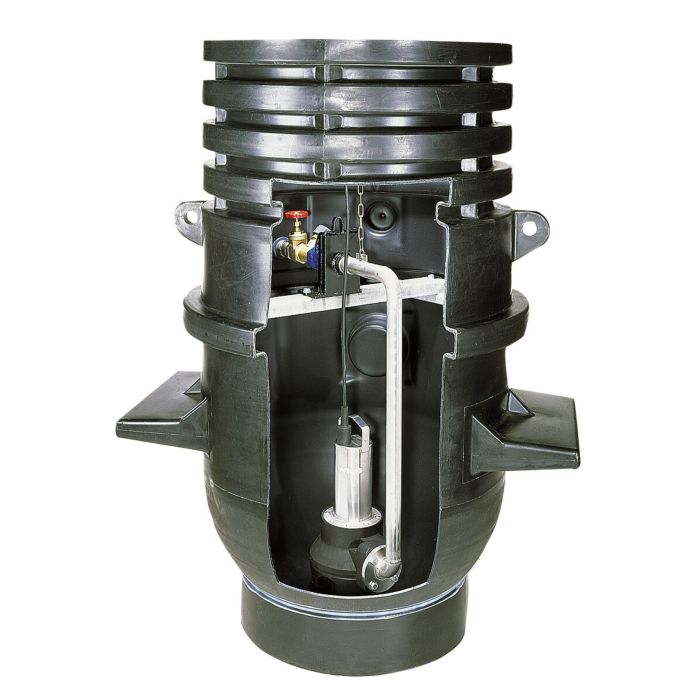

Wilo DrainLift shaft pumping station 2506434
- Plastic pump shaft for insertion into the ground
- Pumping of sewage containing faeces or pre-treated wastewater
- that cannot be fed into the sewer system via a natural gradient
- and for draining objects
- which are below the backflow level
- Pump shaft with pre-assembled piping
- Above-water coupling
- Backflow preventer
- Gate valve
- Flush connection G 1 1/2
- Stainless steel chain with fastening hook
- Support rod for level sensor or float switch with mounting accessories
- Connection material for two DN 150 KG inlet pipes
- Chain
- Installation and operating instructions
- For double pump stations, double the number of fittings (surface couplings
- Gate valve
- …) delivered
- Deposit-free collection room
- high strength due to hemispherical shaft bottom
- four inlets selectable on site
- Stainless steel piping in V4A
