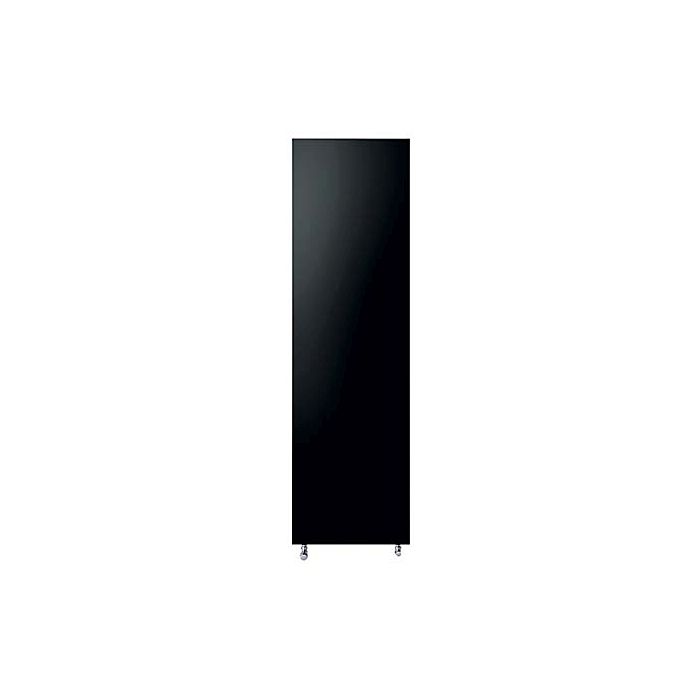

Zehnder Arteplano designer radiator ZAN03004A749000
  • painted
  • Connection to hot water central heating
  • smooth surface
  • standard made of thermo-lacquered steel
  • Optionally with towel holder for subsequent installation at any height
  • Multiple towel rails per radiator possible
  • Side panels are firmly welded to the radiator and are not removable
  • Thermal output according to EN 442
  • With the factory standard connections 4x 1/2" internal thread, the following connection types are possible
  • 1/2" feed/return at the bottom vertically alternating
  • optionally on the left
  • right or middle 50 mm
  • with 1/2" vent valve at the top right
  • Radiator with powder coating
  • standard in color RAL 9016
  • upon request in a special color or surface
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 4
  • 6 bar
  • Operating temperature max. 80 °C
