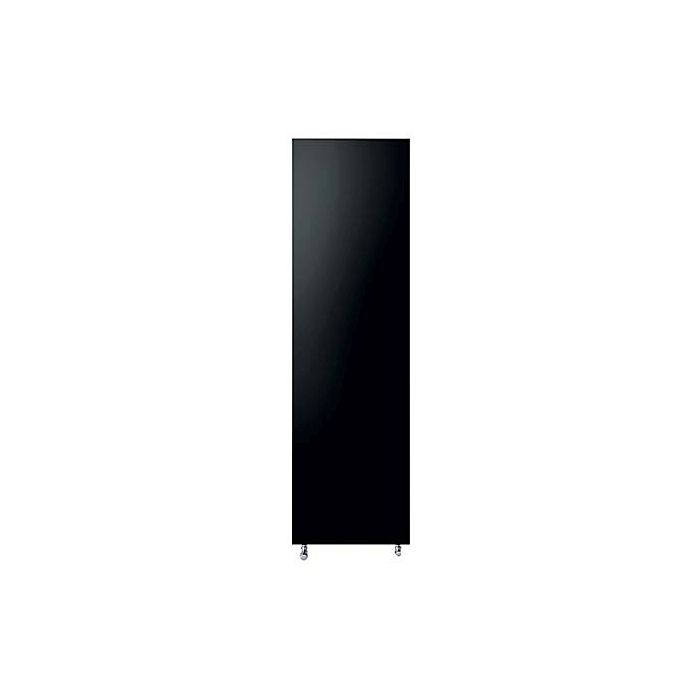

Zehnder Arteplano design radiator ZAN03010AW49000 VZA160-10, 1613 x 749 mm, anthracite gray, RAL 7016, single layer
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder Arteplano designer radiator ZAN03010AW49000
- painted
- Connection to hot water central heating
- smooth surface
- standard made of thermo-lacquered steel
- Optionally with towel holder for subsequent installation at any height
- Multiple towel rails per radiator possible
- Side panels are firmly welded to the radiator and are not removable
- Thermal output according to EN 442
- With the factory standard connections 4x 1/2" internal thread, the following connection types are possible
- 1/2" feed/return at the bottom vertically alternating
- optionally on the left
- right or middle 50 mm
- with 1/2" vent valve at the top right
- Radiator with powder coating
- standard in color RAL 9016
- upon request in a special color or surface
- Delivered ready for assembly with wall brackets
- Operating pressure max. 4
- 6 bar
- Operating temperature max. 80 °C
