Zehnder design radiator ZRI01760G800000 RB-170-060, 1661 x 600 mm, umbra gray, RAL 7022
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

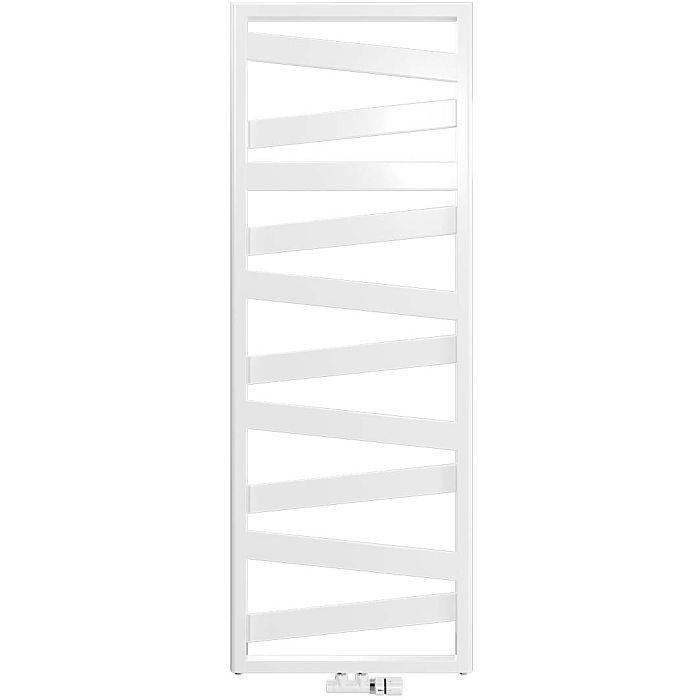

Zehnder designer radiator ZRI01760G800000
- Connection to hot water central heating or for mixed operation
- made of vertically arranged D-profile tubes 30 x 40 mm rounded outwards as well as offset and diagonally arranged flat tubes 70 x 8 mm
- which surround the bathroom radiator
- The resulting recesses on two levels provide space for hanging up several towels
- Additionally, depending on the height, one or two horizontally aligned flat tubes
- D-profile tubes arranged on the side and top as well as square tubes 30 x 30 mm below form a functional frame
- Thermal output according to EN 442
- with CE marking
- with 4 connections at the bottom
- 2x in the middle 1/2" for forward/return
- Distance 50 mm and 2x 1/2"
- outside left and right
- with vent valve
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Operating pressure max. 4 bar
- Operating temperature hot water central heating max. 110 °C
- inconspicuous consoles hidden behind the collecting pipe
- large pipe spacing
- Mounting accessories in the color of the radiator
