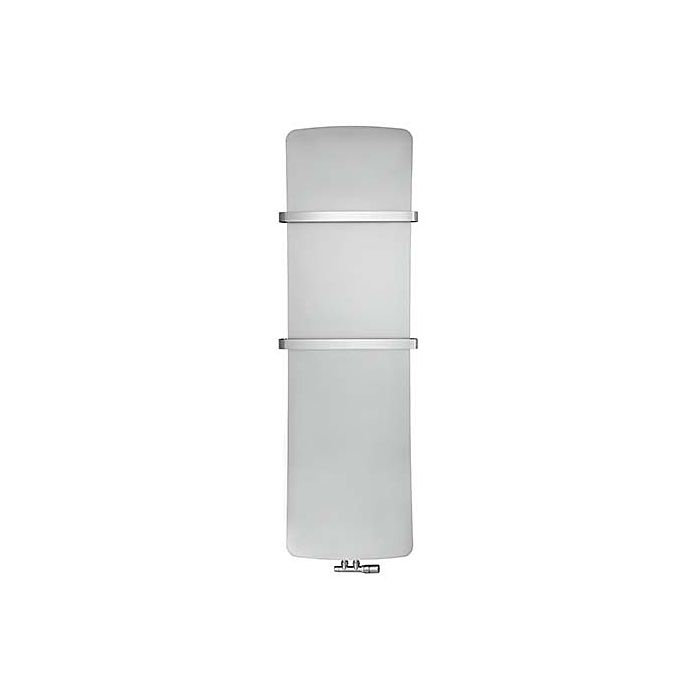

Zehnder Folio designer radiator ZFB00807B800000
  • painted
  • Connection to hot water central heating
  • Depth 16mm
  • Heating register made of copper pipe Ø 12 mm
  • embedded in an aluminum honeycomb construction
  • surrounded by expanded natural graphite
  • beveled edges 45°
  • made of polyamide
  • Depending on the model, one or two towel holders 40 x 4 mm
  • chrome plated
  • for installation at a fixed position
  • included
  • Thermal output according to EN 442
  • with two connections 1/2" internal thread for flow/return at the bottom center
  • Distance 50mm
  • Design vent valve 1/2" top to back
  • Front and back available in aluminum
  • Back with anodized aluminum surface in matt black
  • Delivered ready for installation with wall brackets in radiator color (anodised aluminum surface: matt black wall bracket)
  • Operating pressure max. 10 bar
  • Operating temperature max. 80 °C
