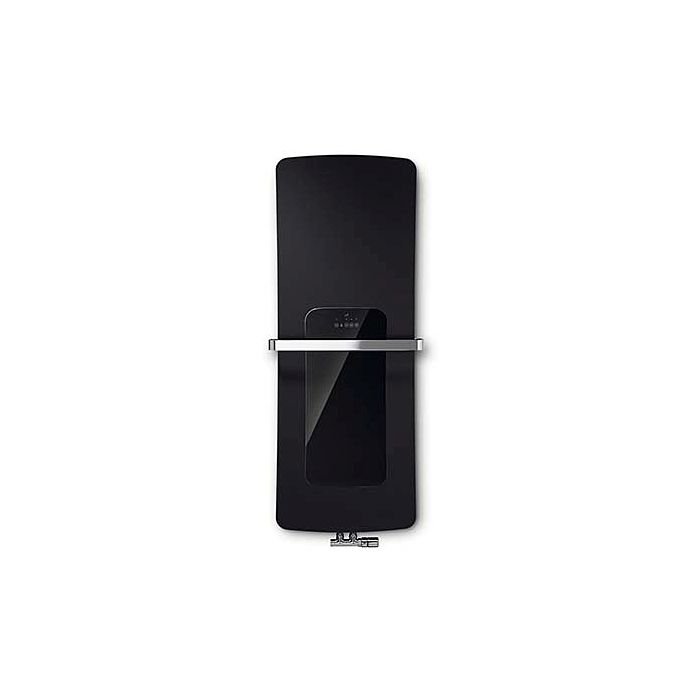

Zehnder Folio designer radiator ZFH40705DG00000 FZHB-150-052/D, 1476 x 535 mm, black matt/black gloss
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder Folio designer radiator ZFH40705DG00000
- combines two heating systems in one radiator
- 16mm deep
- Heating register made of copper pipe Ø 12 mm
- embedded in an aluminum honeycomb construction
- which is surrounded by expanded natural graphite
- beveled edges 45°
- made of polyamide
- Glass surface made of laminated safety glass of 2 x 4 mm
- embedded in it is an electrically operated heating foil
- Both heating systems (radiator and heating element) can be operated independently of each other
- one or two (depending on the model) towel rails 40 x 4 mm
- chrome plated
- for installation at a fixed position
- included
- Thermal output according to EN 442
- with two connections 1/2" internal thread for flow/return at the bottom center
- Distance 50mm
- Design vent valve 1/2" top to back
- Operation of the heating element via control element (touch panel)
- Splash water protected IP45
- Protection class II
- Mains connection 230 V
- Connection cable 1
- 1 m long with Euro plug
- Cable and plug white
- Cable outlet to the rear
- Delivered ready to install with wall brackets in radiator color
- Operating pressure max. 10 bar
- Operating temperature max. 80 °C
- Electrical power 100 watts
