Zehnder Forma Spa designer radiator ZF200250A500000 LF-120-050-05, 1161 x 496 mm, titanium
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

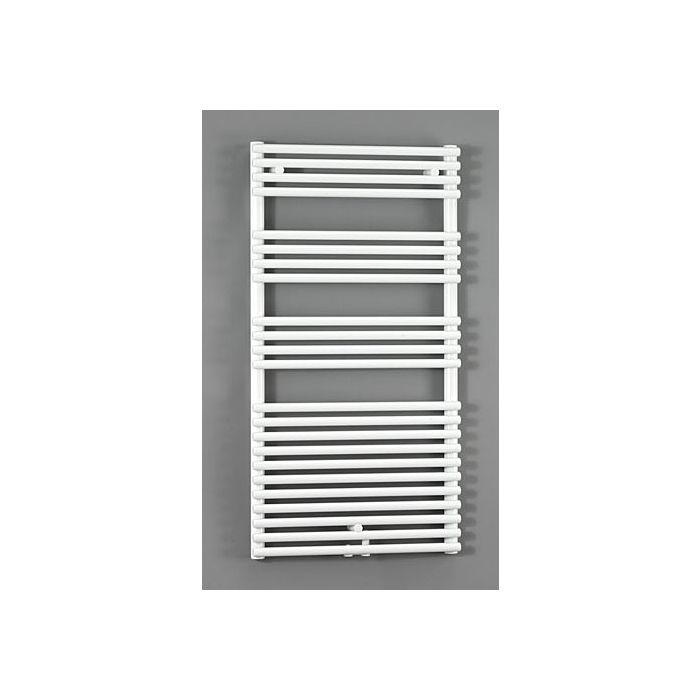

Zehnder Forma Spa designer radiator ZF200250A500000
- single layer
- Connection to hot water central heating or for mixed operation
- made from horizontally arranged precision steel tubes welded onto vertical round tubes
- Invisible connection through cross-hole welding process
- horizontal steel pipes Ø 25 mm
- Vertical header pipes Ø 38 mm
- Thermal performance tested according to EN 442 with CE marking
- with connections in the middle
- 1/2" for forward/rewind
- Hub distance 50 mm and outside left and right
- 1/2" for heating element
- with vent valve 1/2"
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Operating pressure max. 10 bar
- Operating temperature max. 110 °C
- large wall distance
- Available with matching connection fitting
- Mixed operation possible without T-piece
- 4x 1/2" connections for flow
- Rewind
- heating rod
- Mounting accessories in the color of the radiator
