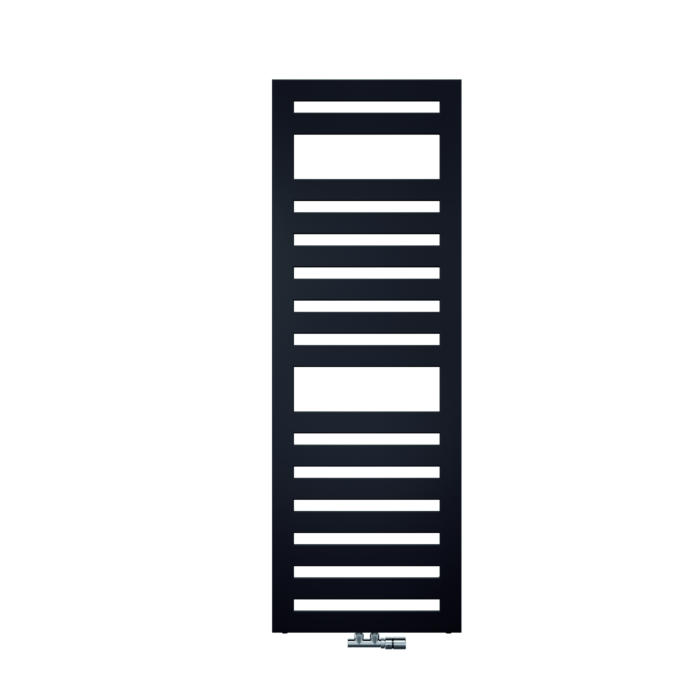

Zehnder Metropolitan Spa designer radiator ZM231450B500020
  • Connection for mixed operation with built-in heating element
  • for use as a bathroom and towel radiator
  • flat radiator with recessed slots
  • consisting of horizontally arranged flat tubes 70 x 8 mm
  • which are connected to a circumferential triangular profile frame without visible welds
  • with one or more openings for holding towels, depending on the height
  • Thermal output according to EN 442
  • with CE marking
  • Connections in mixed mode flow/return 2x 1/2" at the bottom center
  • Distance 50 mm and factory-installed concealed heating element RACY-S at the bottom right
  • with separate radio control unit model 2
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 4 bar
  • Operating temperature max. 95 °C
  • Individually positionable designer towel hooks
  • Valve integration on request
  • Side connections for clean replacement of old DIN radiators on request
  • Radio control unit with batteries
  • selectable operating modes manually (above room temperature)
  • Weekly program
  • timer
  • Out of
  • 1/2" vent valve chrome
  • Mounting accessories in the color of the radiator
