Zehnder quaro designer radiator ZQ100130G500000
  • Connection to hot water central heating
  • made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
  • Invisible weld seams using laser welding processes
  • Square tubes 25 x 25 mm with regular arrangement in a square frame 30 x 30 mm
  • Thermal performance tested according to EN 442
  • with CE marking
  • with recessed connections on the lower square tube in the middle 1/2" for flow/return
  • Hub distance 50 mm and outside left and right 1/2" for heating element
  • with vent valve
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 10 bar
  • Operating temperature max. 110 °C
  • hygienically easy to clean
  • inconspicuously concealed consoles
  • Connections 4x 1/2" IT
  • Heating element (provided by customer) left or right
  • Designer ventilation valve chrome 1/2"
  • Mounting accessories in the color of the radiator

Technical Data Chevron Down

Color grau
length 300 mm
product class Tubular radiators
With fastening material Yes
With towel rail No
series quaro
threaded connection inner thread
With blind plug Yes
Max. Working pressure 10 bar
With consoles Yes
Number of standard connections 4
With vent Yes
With ventilation connection Yes
Water content 3.3 l
mounting type expense
With drain valve no
n-radiator exponent 1.24
Suitable for electric heating element no
With integrated valve set no
With top cover no
With side cover no
Height 971
depth 30kg

Product Safety Chevron Down

Manufacturer
Zehnder Group Deutschland GmbH
E-Mail
info@zehnder-systems.de
Address
Europastraße 10
77933 Lahr
Germany
** Average Wholesale Price

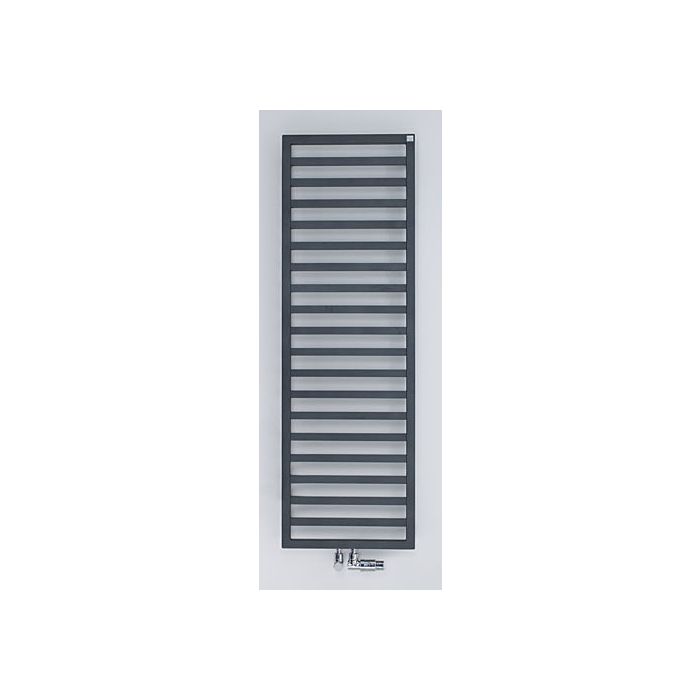

Zehnder quaro design radiator ZQ100130G500000 QA -100-030, 971 x 300 mm, blue gray, RAL 7031
€639.15
instead of €1,060.36
Incl. 19% VAT , plus shipping costs
