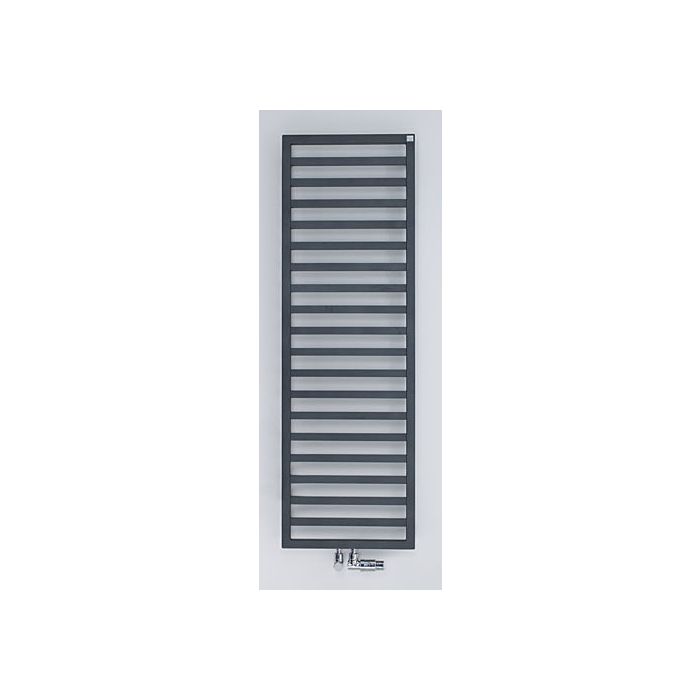

Zehnder quaro designer radiator ZQ100345G900000
  • Connection to hot water central heating
  • made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
  • Invisible weld seams using laser welding processes
  • Square tubes 25 x 25 mm with regular arrangement in a square frame 30 x 30 mm
  • Thermal performance tested according to EN 442
  • with CE marking
  • with recessed connections on the lower square tube in the middle 1/2" for flow/return
  • Hub distance 50 mm and outside left and right 1/2" for heating element
  • with vent valve
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 10 bar
  • Operating temperature max. 110 °C
  • hygienically easy to clean
  • inconspicuously concealed consoles
  • Connections 4x 1/2" IT
  • Heating element (provided by customer) left or right
  • Designer ventilation valve chrome 1/2"
  • Mounting accessories in the color of the radiator
