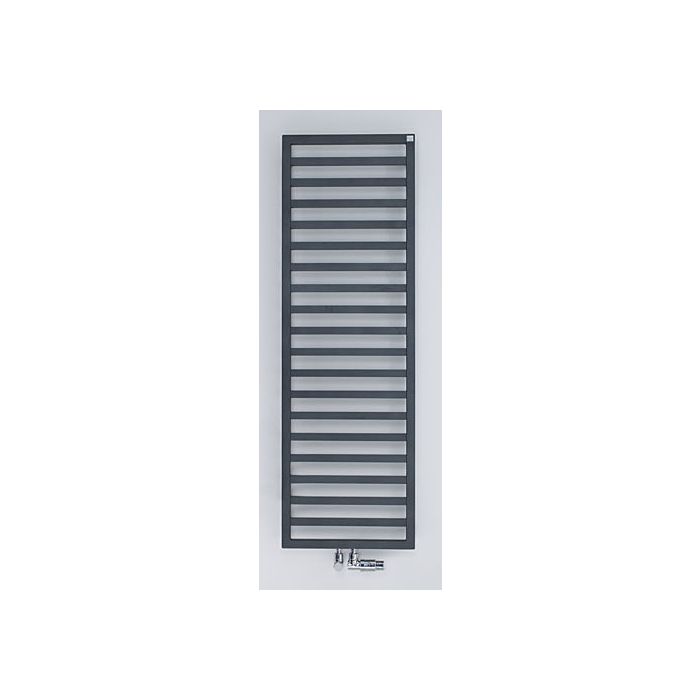

Zehnder quaro design radiator ZQ130360A400020 QAM-180-060/GD, 1865 x 600 mm, stainless steel look
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder quaro designer radiator ZQ130360A400020
- Connection for mixed operation with built-in heating element
- made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
- Invisible weld seams using laser welding processes
- Square tubes 25 x 25 mm with regular arrangement in a square frame 30 x 30 mm
- Thermal performance tested according to EN 442
- with CE marking
- Connections flow/return 2x 1/2" at the bottom center
- Distance 50 mm and factory-installed RACY-S heating element
- pre-assembled at the bottom right
- with radio control unit
- with batteries
- selectable operating modes manually (above room temperature)
- Weekly program
- timer
- Out of
- Cover for the electronics unit of the heating element in the color of the radiator
- Design vent valve chrome 1/2"
- with separate radio control unit model 2
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Operating pressure max. 4 bar
- Operating temperature max. 95 °C
- hygienically easy to clean
- inconspicuously concealed consoles
- Connections 4x 1/2" IT
- Heating element (provided by customer) left or right
- Designer ventilation valve chrome 1/2"
- Mounting accessories in the color of the radiator
