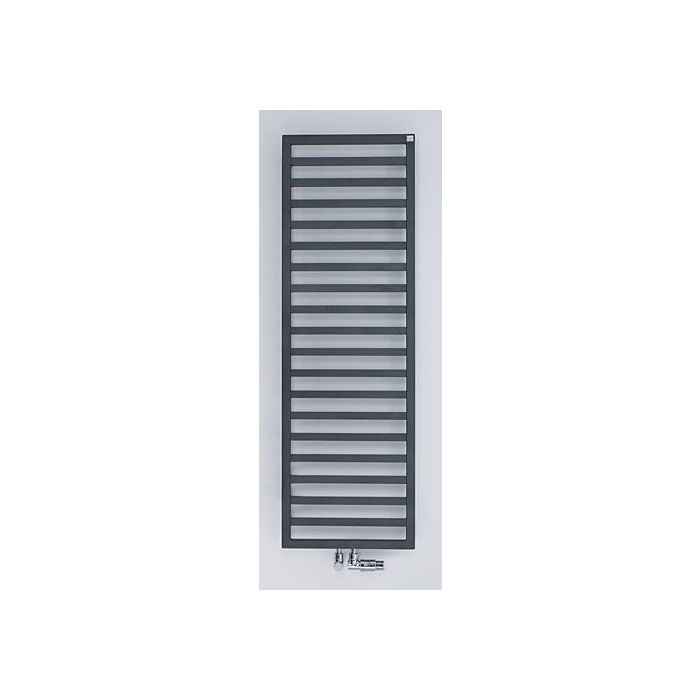

Zehnder quaro designer radiator ZQ130360A700020
  • Connection for mixed operation with built-in heating element
  • made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
  • Invisible weld seams using laser welding processes
  • Square tubes 25 x 25 mm with regular arrangement in a square frame 30 x 30 mm
  • Thermal performance tested according to EN 442
  • with CE marking
  • Connections flow/return 2x 1/2" at the bottom center
  • Distance 50 mm and factory-installed RACY-S heating element
  • pre-assembled at the bottom right
  • with radio control unit
  • with batteries
  • selectable operating modes manually (above room temperature)
  • Weekly program
  • timer
  • Out of
  • Cover for the electronics unit of the heating element in the color of the radiator
  • Design vent valve chrome 1/2"
  • with separate radio control unit model 2
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 4 bar
  • Operating temperature max. 95 °C
  • hygienically easy to clean
  • inconspicuously concealed consoles
  • Connections 4x 1/2" IT
  • Heating element (provided by customer) left or right
  • Designer ventilation valve chrome 1/2"
  • Mounting accessories in the color of the radiator
