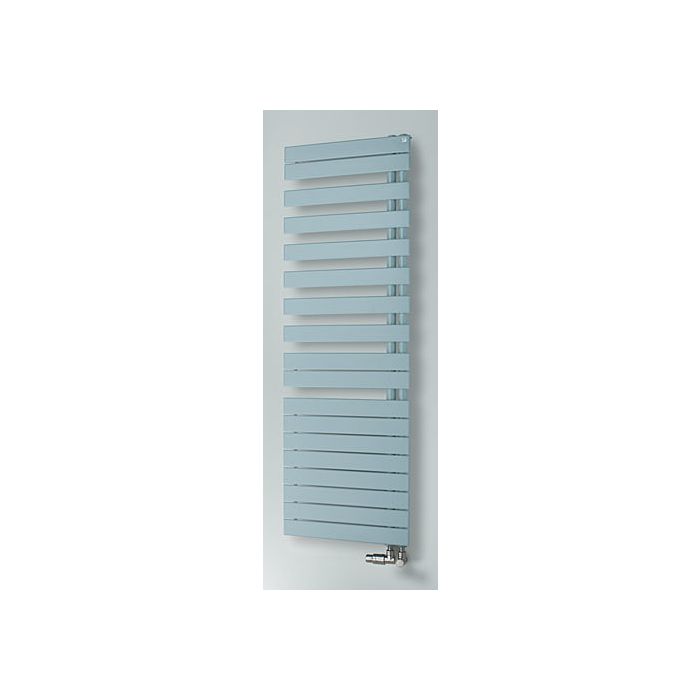

Zehnder Roda Spa Asym designer radiator ZRF60555GE00000
  • Connection to hot water central heating
  • made of horizontally arranged precision flat tubes and vertical header tubes
  • without visible weld seams
  • completely welded
  • Flat tubes 70 x 11 mm arranged asymmetrically on one side branch off to the side of the collector Ø 38 mm
  • Towels can be inserted to the side for warming
  • Thermal performance tested according to EN 442
  • with CE marking
  • with connections at the bottom 2x 1/2" for flow/return
  • Hub distance 50 mm
  • with 1/8" vent valve
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for installation with wall brackets in the same color as the radiator
  • Operating pressure max. 4 bar
  • Operating temperature max. 110 °C
  • Mounting accessories in the color of the radiator
