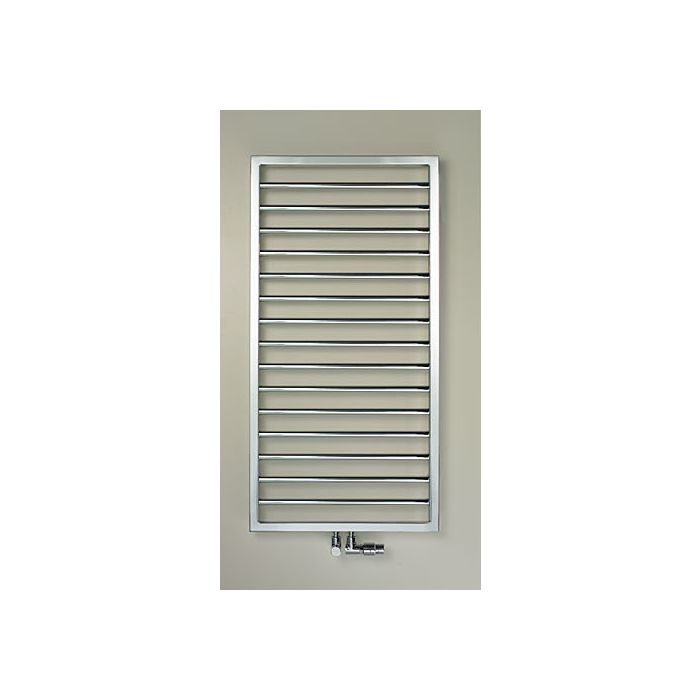

Zehnder Subway designer radiator ZS300360A700000
  • Connection to hot water central heating
  • made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
  • Invisible weld seams using laser welding processes
  • Round tubes Ø 23 mm with regular arrangement in a frame made of square tubes 30 x 30 mm
  • Thermal performance tested according to EN 442
  • with CE marking
  • with recessed connections on the lower square tube in the middle 1/2" for flow/return
  • Hub distance 50 mm and outside left and right 1/2" for heating element
  • with vent valve
  • with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Room divider version: Radiator without threaded bolts for wall console with room divider mounting set
  • Operating pressure max. 10 bar
  • Operating temperature max. 110 °C
  • large spaces for towel storage
  • Special connection 150 mm possible
  • Model SUB-060-045 suitable as a guest toilet radiator
  • Mounting accessories in the color of the radiator
