Zehnder Subway design radiator ZS330160A600020 SUBM-130-60/GD, 1291 x 600 mm, Volcanic
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

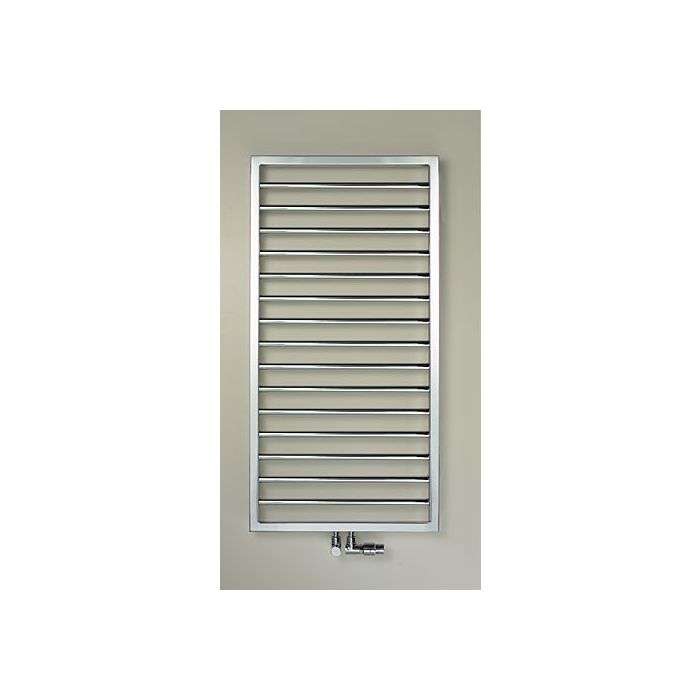

Zehnder Subway designer radiator ZS330160A600020
- Connection for mixed operation with built-in heating element
- made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
- Invisible weld seams using laser welding processes
- Round tubes Ø 23 mm with regular arrangement in a frame made of square tubes 30 x 30 mm
- Thermal performance tested according to EN 442
- with CE marking
- with recessed flow/return connections 2x 1/2" at the bottom center
- Distance 50 mm and factory-installed RACY-S heating element
- pre-assembled at the bottom right
- with radio control unit
- Batteries
- selectable operating modes manually (above room temperature)
- Weekly program
- timer
- Out of
- Cover for the electronics unit of the heating element in the color of the radiator
- 1/2" vent valve chrome
- with separate radio control unit model 2
- with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Room divider version: Radiator without threaded bolts for wall console with room divider mounting set
- Operating pressure max. 4 bar
- Operating temperature max. 95 °C
- large spaces for towel storage
- Special connection 150 mm possible
- Model SUB-060-045 suitable as a guest toilet radiator
- Mounting accessories in the color of the radiator
