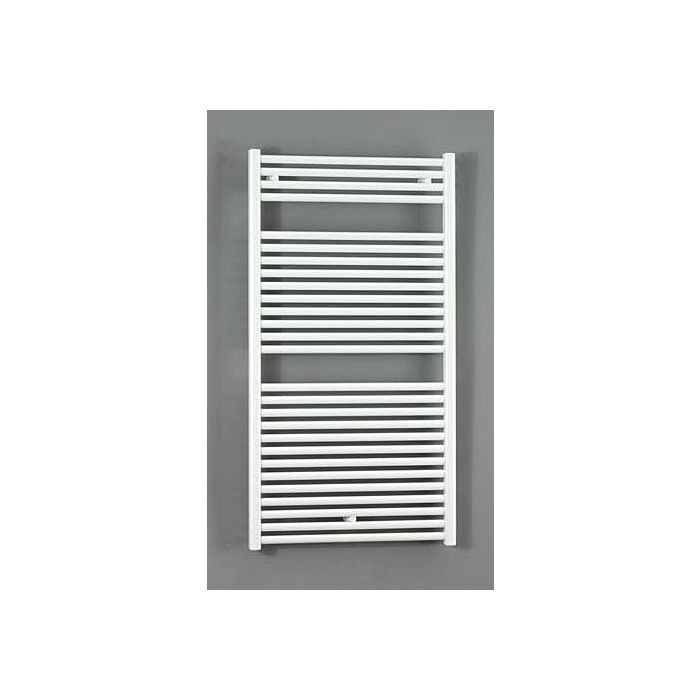

Zehnder toga exchange design radiator ZT100450GAN5020 TG-120-050-50-L, 1148 x 500 mm, yellow gray, RAL 7034
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder toga replacement designer radiator ZT100450GAN5020
- Left
- Radiator replacement models
- made of horizontally arranged precision steel tubes with vertical D-profile tubes
- Pipe connection soldered without visible connecting seams
- Round tube Ø 23 mm
- D-pipe 30 x 35 mm
- Immersion tube PE Ø 14 x 1 mm
- Thermal performance tested according to EN 442
- CE marking
- with recessed connections on the D-profile pipe (1/2" for flow/return) on the left
- Connection dimensions suitable for old DIN
- Cast iron or panel radiators with hub spacing 500
- 900 mm or on request
- with vent valve 1/4" on the right
- Delivered ready for assembly with wall brackets
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Operating pressure max. 11
- 5 bar
- Operating temperature max. 110 °C
- Can be used as a room divider
- generous recess
- high performance thanks to internal installations
- Side connections for clean replacement of old DIN radiators
- 2x 1/2" connections on the side
- 1x 1/2" below
- Mounting accessories in the color of the radiator
