Zehnder toga design radiator ZT100345A700000 TO-120-045, 1148 x 450 mm, white aluminum
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

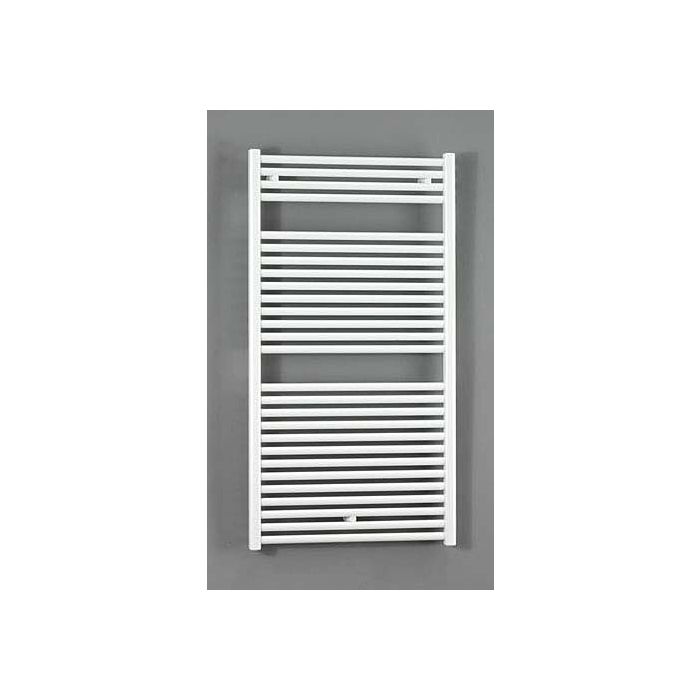

Zehnder toga designer radiator ZT100345A700000
- Connection to hot water central heating or for mixed operation
- made of horizontally arranged precision steel tubes with vertical D-profile tubes
- Pipe connection soldered without visible connecting seams
- Round tube Ø 23 mm
- D-pipe 30 x 35 mm
- Immersion tube PE Ø 14 x 1 mm
- Thermal performance tested according to EN 442
- CE marking
- with recessed connections on the D-profile pipe (1/2" for flow/return)
- with vent valve 1/4" on the right
- Delivered ready for assembly with wall brackets
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Operating pressure max. 11
- 5 bar
- Operating temperature max. 110 °C
- Can be used as a room divider
- generous recess
- high performance thanks to internal installations
- Side connections for clean replacement of old DIN radiators
- 2x 1/2" connections for flow
- Rewind
- Mounting accessories in the color of the radiator
