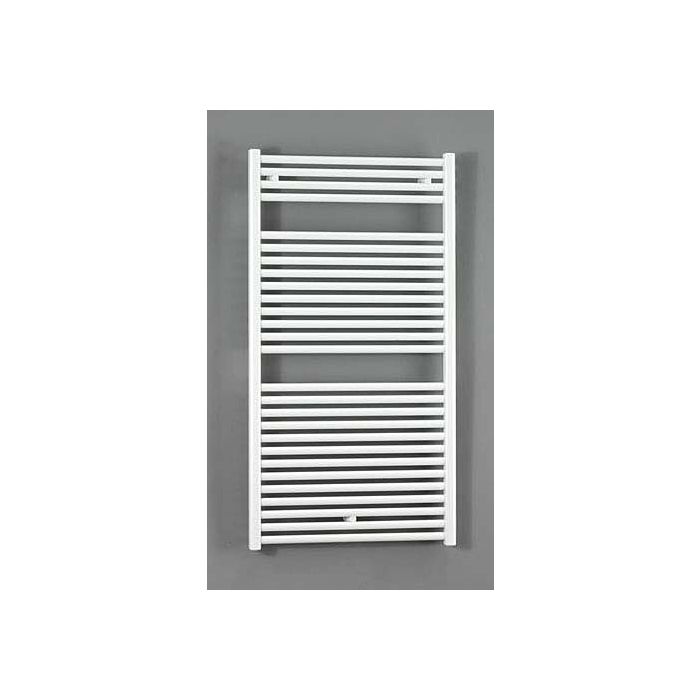

Zehnder toga designer radiator ZT100375A400000
  • Connection to hot water central heating or for mixed operation
  • made of horizontally arranged precision steel tubes with vertical D-profile tubes
  • Pipe connection soldered without visible connecting seams
  • Round tube Ø 23 mm
  • D-pipe 30 x 35 mm
  • Immersion tube PE Ø 14 x 1 mm
  • Thermal performance tested according to EN 442
  • CE marking
  • with recessed connections on the D-profile pipe (1/2" for flow/return)
  • with vent valve 1/4" on the right
  • Delivered ready for assembly with wall brackets
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Operating pressure max. 11
  • 5 bar
  • Operating temperature max. 110 °C
  • Can be used as a room divider
  • generous recess
  • high performance thanks to internal installations
  • Side connections for clean replacement of old DIN radiators
  • 2x 1/2" connections for flow
  • Rewind
  • Mounting accessories in the color of the radiator
