Zehnder troja t design radiator ZT300245G900000 TG-070-045-05, 716 x 450 mm, Concrete gray
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

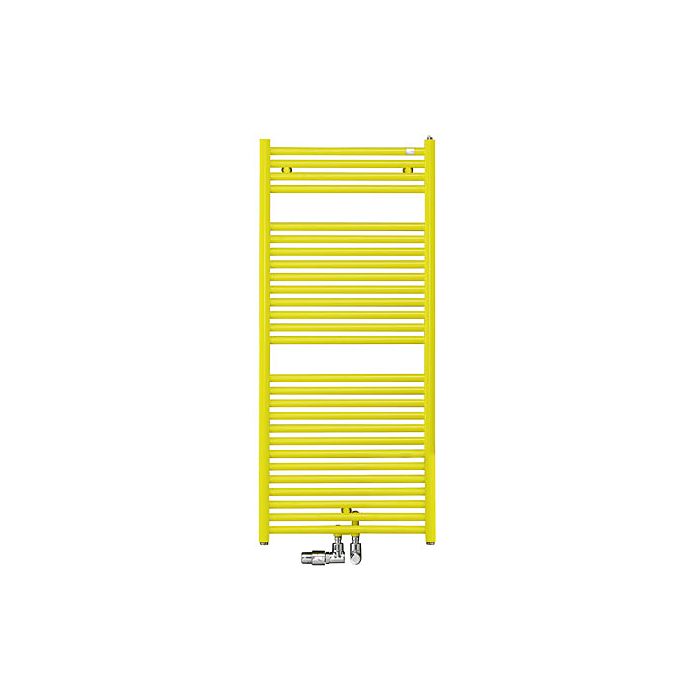

Zehnder troja t designer radiator ZT300245G900000
- Connection to hot water central heating or for mixed operation
- made of horizontally arranged precision steel tubes with vertical D-profile tubes
- Pipe connection soldered without visible connecting seams
- Round tube Ø 23 mm
- D-pipe 30 x 35 mm
- Thermal output according to EN 442
- with CE marking
- Flow/return connection in the middle 1/2"
- Connection 50 mm for connection fitting
- Connection for heating rod 2x 1/2" at the bottom of the D-profile tube
- Vent upwards 1/4"
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- Operating pressure max. 11
- 5 bar
- Operating temperature max. 110 °C
- Mixed operation possible without T-piece
- Mounting accessories in the color of the radiator
Product Safety
Manufacturer
Zehnder Group Deutschland GmbH
E-Mail
info@zehnder-systems.de
Address
Europastraße 10
77933 Lahr
Germany
