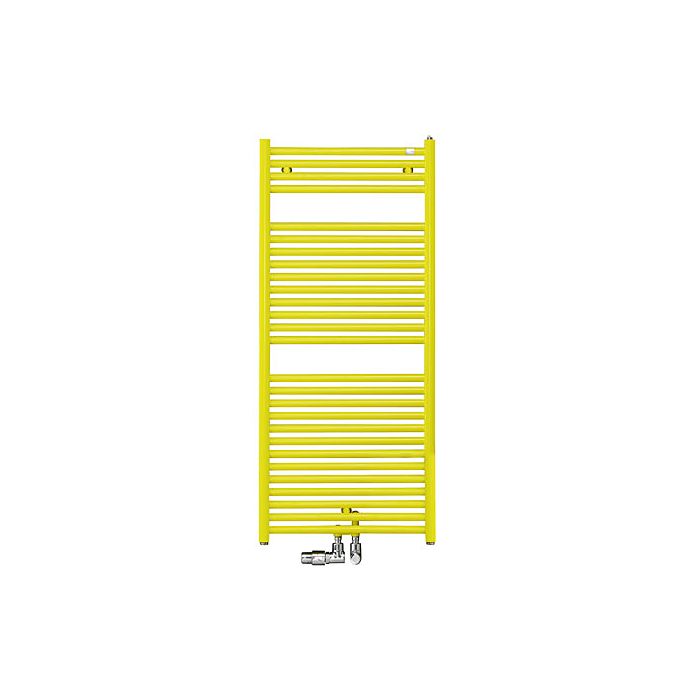

Zehnder troja t designer radiator ZT300845BB00000
  • Connection to hot water central heating or for mixed operation
  • made of horizontally arranged precision steel tubes with vertical D-profile tubes
  • Pipe connection soldered without visible connecting seams
  • Round tube Ø 23 mm
  • D-pipe 30 x 35 mm
  • Thermal output according to EN 442
  • with CE marking
  • Flow/return connection in the middle 1/2"
  • Connection 50 mm for connection fitting
  • Connection for heating rod 2x 1/2" at the bottom of the D-profile tube
  • Vent upwards 1/4"
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 11
  • 5 bar
  • Operating temperature max. 110 °C
  • Mixed operation possible without T-piece
  • Mounting accessories in the color of the radiator
