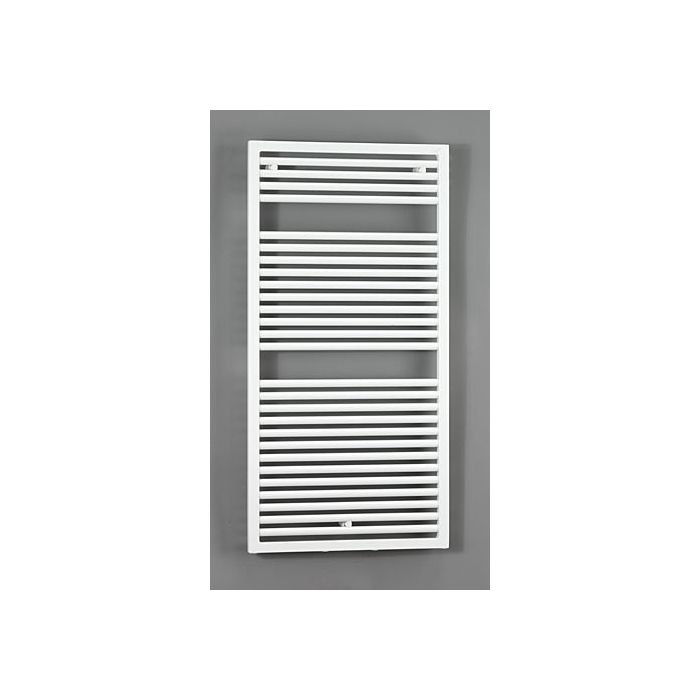

Zehnder universal designer radiator ZU200275A300000
  • Connection to hot water central heating or for mixed operation
  • made of horizontally arranged precision steel tubes with circumferential square tubes completely welded
  • Invisible weld seams using laser welding processes
  • horizontal round tubes Ø 23 mm
  • with surrounding square tubes 30 x 30 mm
  • Thermal performance tested according to EN 442
  • with CE marking
  • with recessed connections on the lower square tube
  • 1/2" in the middle for flow/return and 1/2" on the outside left and right for heating rod
  • with vent valve 1/4"
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • Operating pressure max. 11
  • 5 bar
  • Operating temperature max. 110 °C
  • small wall distance
  • Side connections for clean replacement of old DIN radiators
  • short renovation time when replacing radiators
  • 4x 1/2" connections for flow
  • Rewind
  • heating rod
  • Mounting accessories in the color of the radiator
