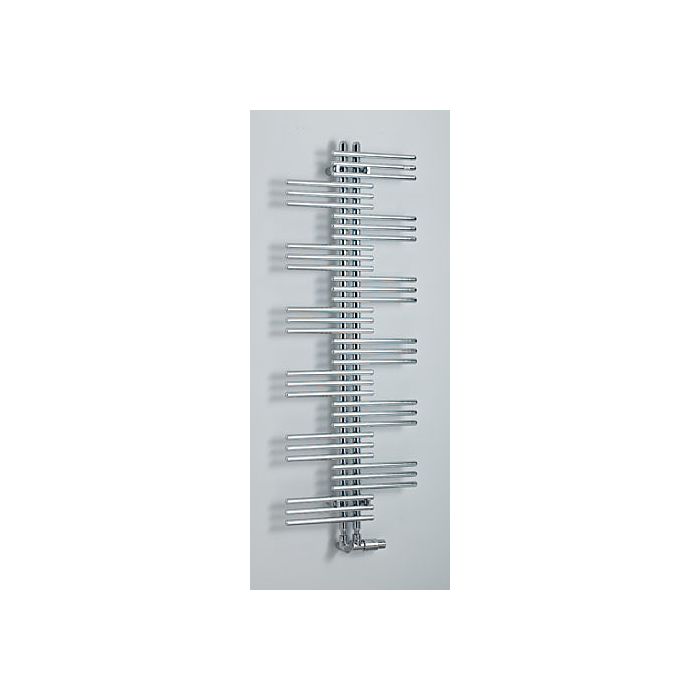

Zehnder yucca design radiator ZY100250A300000 YS-090-050, 908 x 500 mm, gray aluminum, single layer
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder yucca design radiator ZY100250A300000
- made of horizontally arranged precision steel tubes and vertical header tubes
- without visible weld seams
- fully welded using cross hole welding process
- Tube packages each consisting of 3 horizontal tubes branching off symmetrically to the left and right of the centrally arranged collectors
- Towels can be inserted to the side for warming or drying
- Collector pipes Ø 30 mm
- Horizontal tubes Ø 20 mm
- Heat output according to EN 442
- with CE marking
- 4x 1/2" connection at the ends of the header pipes for pre-
- Rewind
- Heating element and ventilation
- Connection dimension 50 mm
- suitable for using a special connection fitting in one or two-pipe operation
- Radiator with powder coating
- standard in color RAL 9016
- upon request in a special color or chrome
- Delivered ready to install with wall brackets in the same color as the radiator
- Operating pressure max. 12 bar
- Operating temperature max. 110 °C
- low overall depth
- easy cleaning (lambskin cleaning brush)
- rounded edges
- transparent optics
- Connection possible from above
- Mixed operation possible with connection fitting
