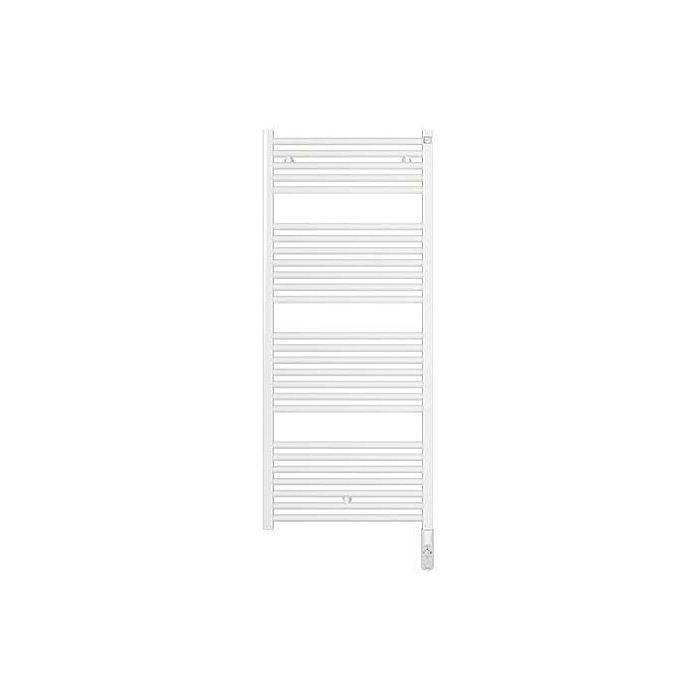

Zehnder zeno designer electric radiator ZZ1A0260B100000
  • single layer
  • purely electric
  • with heating element DBM
  • made of horizontally arranged round tubes and vertically running header tubes with a square profile
  • Pipe connection soldered without visible connecting seams
  • Round tubes Ø 23 mm
  • Collector pipes 30 x 30 mm
  • with built-in heating element DBM
  • Protection class IP44 (splash-proof)
  • for mains voltage 230 V +/-10%
  • installed at the bottom right
  • Connection cable with protective contact plug 1
  • 2m long
  • filled with non-flammable heat transfer fluid
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • white
  • Selectable medium temperature in 3 levels
  • 70°C and 40°C
  • Frost protection
  • Out of
  • 2 hour timer function
  • Dry running protection
  • Ready to plug in
  • without a separate control unit
  • Frost-proof down to -10 °C
  • Cover of the heating element in white (for radiators in RAL 9016) or chrome (all other surfaces)
  • Mounting accessories in the color of the radiator
