Zehnder zeno designer radiator ZZ200460G900000 150-060-05, 1508 x 600 mm, Concrete gray
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

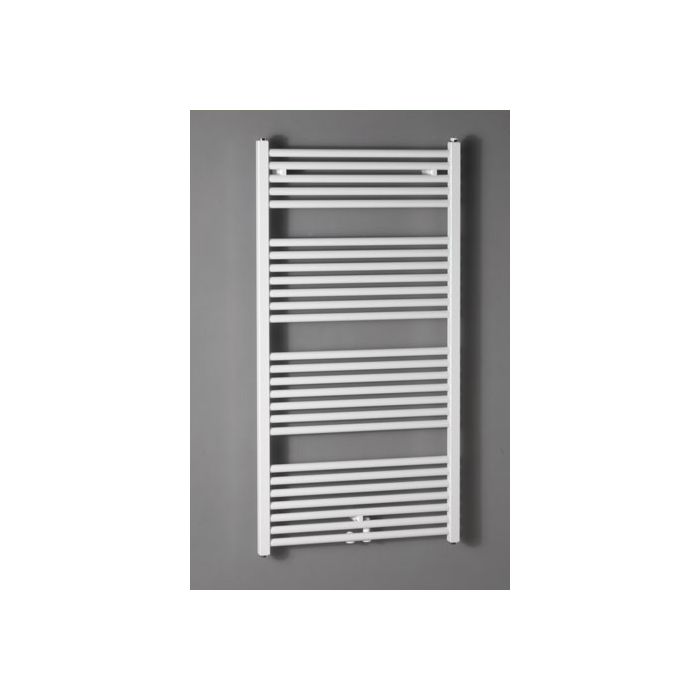

Zehnder zeno designer radiator ZZ200460G900000
- single layer
- Connection to hot water central heating with center connection 50 mm
- made of horizontally arranged round tubes and vertically running header tubes with a square profile
- Pipe connection soldered without visible connecting seams
- Round tubes Ø 23 mm
- Collector pipes 30 x 30 mm
- Thermal output according to EN 442
- with CE marking
- Connections at the top and bottom of the collecting pipes for VL
- R.L
- Venting
- Blind plug
- 4x 1/2" IT or additionally with 50 mm connection 2x 1/2" IT in the middle
- Flow and return at the lower end of the square tubes can be freely selected
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- white
- Operating pressure max. 11
- 5 bar
- Operating temperature max. 110 °C
- 2x 1/2" connections for flow
- Return or 4x 1/2" connections for flow
- Rewind
- heating rod
- Mounting accessories in the color of the radiator
