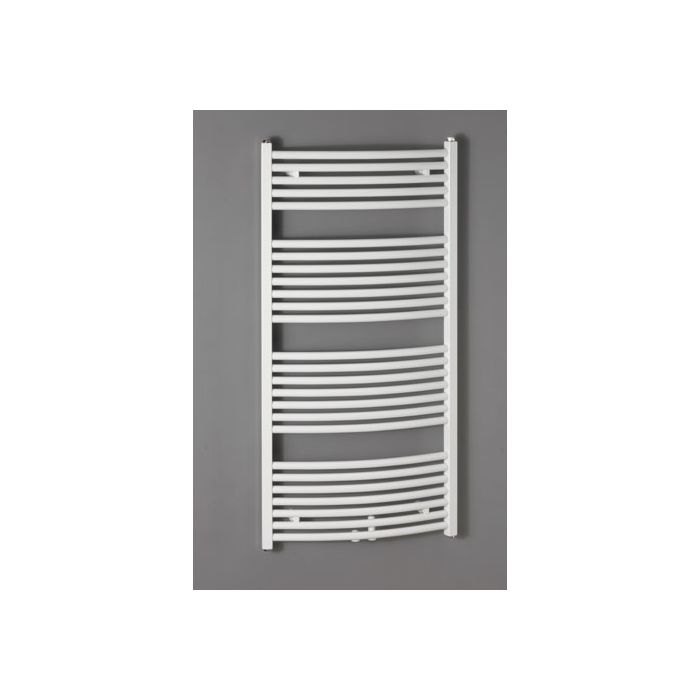

Zehnder zeno designer radiator ZZ300350B400000
  • Connection to hot water central heating or for mixed operation
  • consisting of horizontally arranged pipe bends made of round pipes and vertically running header pipes with a square profile
  • Pipe connection soldered without visible connecting seams
  • Round tubes Ø 23 mm
  • Collector pipes 30 x 30 mm
  • Thermal output according to EN 442
  • with CE marking
  • Connections at the top and bottom of the collecting pipes for VL
  • R.L
  • Venting
  • Blind plug
  • 4x 1/2" IT or additionally with 50 mm connection 2x 1/2" IT in the middle
  • Flow and return at the lower end of the square tubes can be freely selected
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • white
  • 1/2" vent valve
  • Mounting accessories
  • white
  • Operating pressure max. 11
  • 5 bar
  • Operating temperature max. 110 °C
