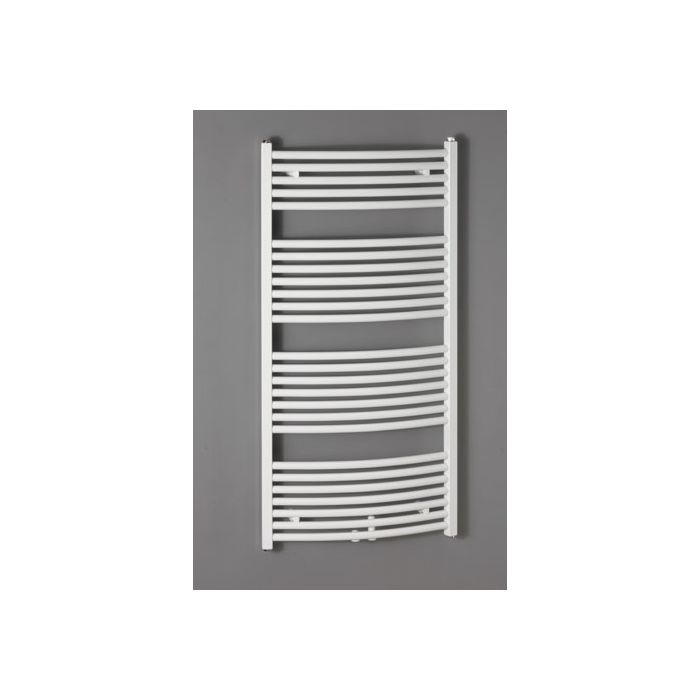

Zehnder zeno designer radiator ZZ400160A500000
  • Connection to hot water central heating with center connection 50 mm
  • consisting of horizontally arranged pipe bends made of round pipes and vertically running header pipes with a square profile
  • Pipe connection soldered without visible connecting seams
  • Round tubes Ø 23 mm
  • Collector pipes 30 x 30 mm
  • Thermal output according to EN 442
  • with CE marking
  • Connections at the top and bottom of the collecting pipes for VL
  • R.L
  • Venting
  • Blind plug
  • 6x 1/2"
  • Distance 50mm
  • Forward and reverse can be freely selected
  • Radiator with powder coating
  • standard in color RAL 9016
  • in special colors upon request
  • Delivered ready for assembly with wall brackets
  • white
  • 1/2" vent valve
  • Mounting accessories
  • white
  • Operating pressure max. 11
  • 5 bar
  • Operating temperature max. 110 °C

Product Safety Chevron Down

Manufacturer
Zehnder Group Deutschland GmbH
E-Mail
info@zehnder-systems.de
Address
Europastraße 10
77933 Lahr
Germany
