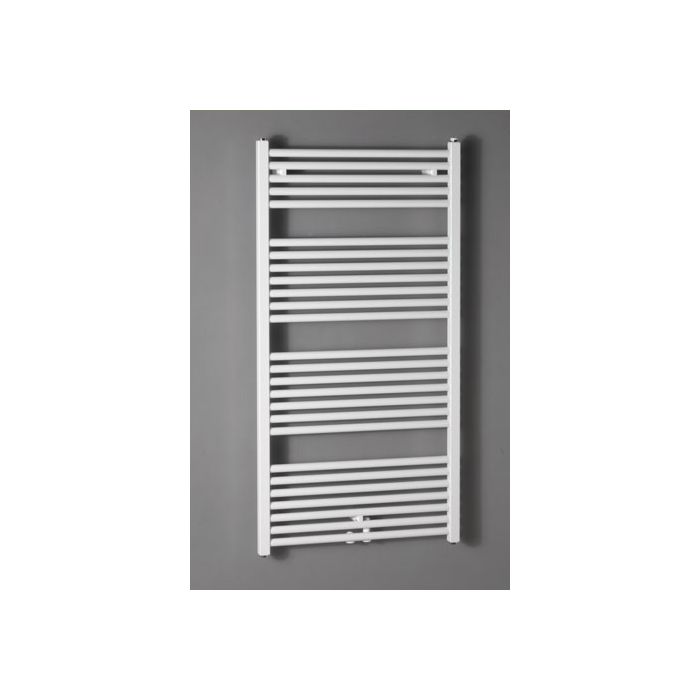

Zehnder zeno design radiator ZZ500260G4N9000 ZN-120-060-NA90, 1184 x 600 mm, light jeans
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Zehnder zeno designer radiator ZZ500260G4N9000
- single layer
- Connection to hot water central heating
- Radiator replacement model
- made of horizontally arranged round tubes and vertically running header tubes with a square profile
- Pipe connection soldered without visible connecting seams
- Round tubes Ø 23 mm
- Collector pipes 30 x 30 mm
- Thermal output according to EN 442
- with CE marking
- with recessed connections on the side of the collecting pipe (1/2" for flow/return)
- rotatable right or left
- Connection dimensions suitable for old DIN
- Cast iron or panel radiators with hub spacing of 900 mm
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- white
- Operating pressure max. 11
- 5 bar
- Operating temperature max. 110 °C
- 2x 1/2" connections on the side
- 1/2" vent valve
- Mounting accessories in the color of the radiator
