Zehnder zeno designer radiator ZZ6002A0B100000 ZND-120-100-05, 1171 x 1000 mm, white, RAL 9016
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

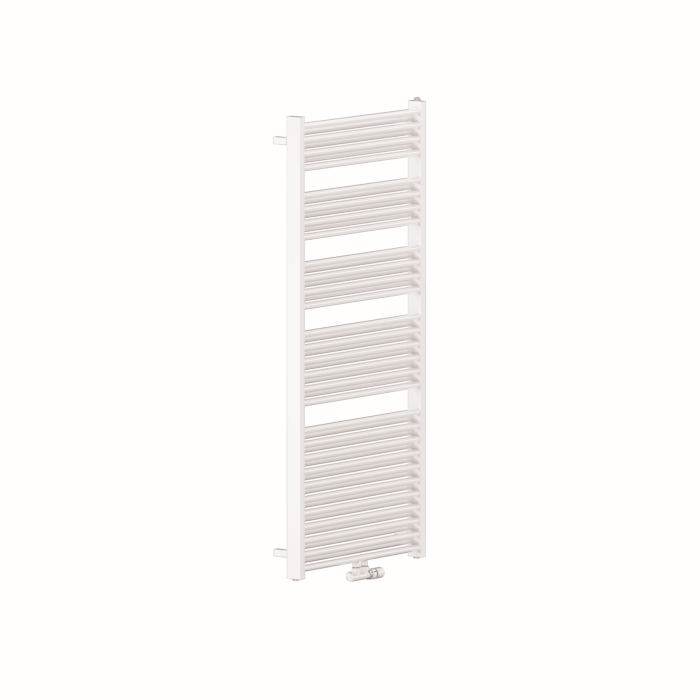

Zehnder zeno designer radiator ZZ6002A0B100000
- double layered
- Connection to hot water central heating with center connection 50 mm
- with round tubes Ø 23 mm arranged one behind the other at different heights and vertical collecting tubes made of square tubes 30 x 60 mm
- Thermal output according to EN 442
- with CE marking
- Connections 4x 1/2" IT on the collecting pipes and 50 mm connection 2x 1/2" IT in the middle
- Forward and reverse can be freely selected
- upon request with recessed side connections 2x 1/2" female thread on the right or left
- Radiator with powder coating
- standard in color RAL 9016
- in special colors upon request
- Delivered ready for assembly with wall brackets
- white
- Operating pressure max. 7 bar
- Operating temperature max. 110 °C
- 4x 1/2" connections for flow
- Rewind
- heating rod
- 1/2" vent valve
- Mounting accessories in the color of the radiator
