Zehnder zeno design radiator ZZ700160B100000 ZW-080-060-05, 788 x 600 mm, white
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

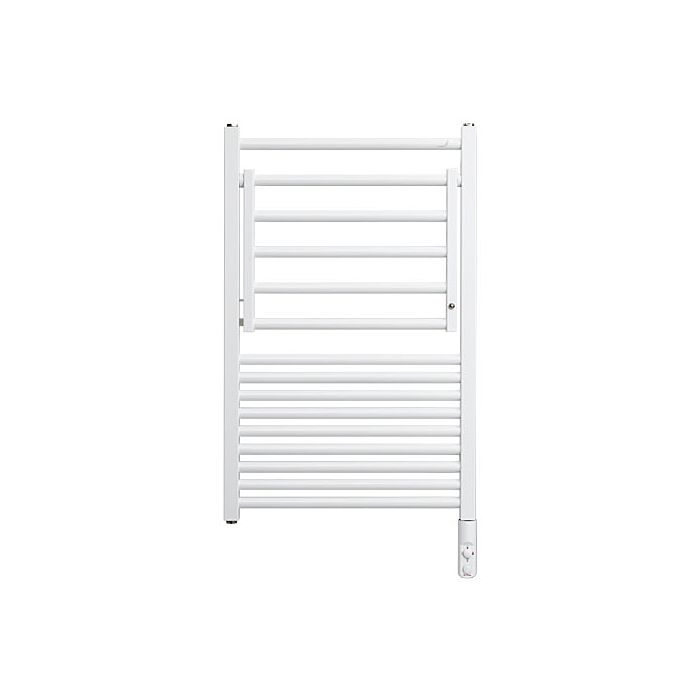

Zehnder zeno designer radiator ZZ700160B100000
- Connection to hot water central heating or for mixed operation
- with fold-out
- heated towel rack
- Radiator made of horizontally arranged round tubes and vertical collecting tubes with a square profile
- Pipe connection soldered without visible connecting seams
- Round tubes Ø 23 mm
- Collector pipes 30 x 30 mm
- Towel rack made of square tubes 20 x 30 mm and round tubes Ø 23 mm
- Each radiator has a water-flowing towel rack that can be folded out upwards or a second water-flowed towel rack that can be folded out downwards and has a height of 1688 mm
- Load capacity per towel rack max. 4 kg
- Depending on the height, additional towel recesses for hanging towels
- Thermal performance tested according to EN 442
- with CE marking
- Connections at the top and bottom of the header pipes for flow
- Rewind
- Venting
- Blind plug
- 4x 1/2" IT additionally with 50 mm connection 2x 1/2" IT in the middle
- Radiator finished with powder coating in color RAL 9016
- Delivered ready for assembly with wall brackets
- white
- Operating pressure max. 5 bar
- Operating temperature max. 95 °C
- Towel rack with generous tube spacing for convenient hanging of several towels and textiles
- Consoles hidden behind the collecting pipe
- 1/2" vent valve
- 1x special ventilation valve per towel rack
- Mounting accessories in white
